xtd::drawing::point Struct Reference

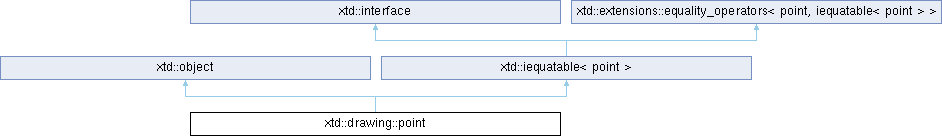

Inheritance diagram for xtd::drawing::point:

Definition

Represents an ordered pair of integer x- and y-coordinates that defines a point in a two-dimensional plane.

class drawing_export_ point : public xtd::object

Inheritance

xtd::object → xtd::drawing::point

Namespace

xtd::drawing

Library

xtd.drawing

Remarks

To convert a point to a point_f, use Implicit cast operator.

Examples

void create_points_and_sizes(paint_event_args& e) {
  // Create the starting point.
  point start_point = subtract_button.size();

  // Use the addition operator to get the end point.
  point end_point = start_point + size(140, 150);

  // Draw a line between the points.
  e.graphics().draw_line(system_pens::highlight, start_point, end_point);

  // Convert the starting point to a size and compare it to the subtractButton size.
  size button_size(start_point);
  if (button_size == subtract_button.size()) {
    // If the sizes are equal, tell the user.
    e.graphics().draw_string("The sizes are equal.", font(font, font_style.italic), brushes::indigo, 10.0F, 65.0F);
  }
}

Examples

buttons.cpp, form_paint.cpp, graphics.cpp, point.cpp, and tutorial_button.cpp.

Public Fields
static const point	empty
	Represents a xtd::drawing::point that has xtd::drawing::point::x and xtd::drawing::point::y values set to zero.

Public Properties
xtd::int32	x
	Gets or sets the x-coordinate of this xtd::drawing::point.
xtd::int32	y
	Gets or sets the y-coordinate of this xtd::drawing::point.
auto	is_empty () const noexcept -> bool
	Gets a value indicating whether this xtd::drawing::point is empty.

Public Constructors
	point () noexcept=default
	Initializes a new instance of the xtd::drawing::point class.
	point (int32 dw) noexcept
	Initializes a new instance of the xtd::drawing::point class using coordinates specified by an integer value.
	point (xtd::int32 x, xtd::int32 y) noexcept
	Initializes a new instance of the xtd::drawing::point class with the specified coordinates.
	point (const size &sz) noexcept
	Initializes a new instance of the xtd::drawing::point class from a xtd::drawing::size.

Public Methods
auto	equals (const xtd::object &obj) const noexcept -> bool override
	Determines whether the specified object is equal to the current object.
auto	equals (const point &other) const noexcept -> bool override
	Determines whether the specified object is equal to the current object.
auto	get_hash_code () const noexcept -> xtd::usize override
	Serves as a hash function for a particular type.
auto	offset (xtd::int32 dx, xtd::int32 dy) noexcept -> void
	Translates this xtd::drawing::point by the specified amount.
auto	offset (const point &p) noexcept -> void
	Translates this xtd::drawing::point by the specified xtd::drawing::point.
auto	to_string () const noexcept -> xtd::string override
	Converts this point to a human-readable string.

Operators
auto	operator+ (const xtd::drawing::size &sz) const noexcept -> point
	Translates a xtd::drawing::point by a given xtd::drawing::size.
auto	operator+ (const point &pt) const noexcept -> point
	Translates a xtd::drawing::point by a given xtd::drawing::point.
auto	operator+= (const xtd::drawing::size &sz) noexcept -> point &
	Translates a xtd::drawing::point by a given xtd::drawing::size.
auto	operator+= (const point &pt) noexcept -> point &
	Translates a xtd::drawing::point by a given xtd::drawing::point.
auto	operator- (const xtd::drawing::size &sz) const noexcept -> point
	Translates a xtd::drawing::point by the negative of a given xtd::drawing::size.
auto	operator- (const point &pt) const noexcept -> point
	Translates a xtd::drawing::point by the negative of a given xtd::drawing::point.
auto	operator-= (const xtd::drawing::size &sz) noexcept -> point &
	Translates a xtd::drawing::point by the negative of a given xtd::drawing::size.
auto	operator-= (const point &pt) noexcept -> point &
	Translates a xtd::drawing::point by the negative of a given xtd::drawing::point.

Public Static Methods
static auto	add (const point &pt, const xtd::drawing::size &sz) noexcept -> point
	Adds the specified xtd::drawing::size to the specified xtd::drawing::point.
static auto	add (const point &pt1, const point &pt2) noexcept -> point
	Adds the specified xtd::drawing::point to the specified xtd::drawing::point.
static auto	ceiling (const xtd::drawing::point_f &value) noexcept -> point
	Converts the specified xtd::drawing::point_f to a point by rounding the values of the xtd::drawing::point_f to the next higher integer values.
static auto	round (const xtd::drawing::point_f &value) noexcept -> point
	Converts the specified xtd::drawing::point_f to a point object by rounding the xtd::drawing::point_f values to the nearest integer.
static auto	subtract (const point &pt, const size &sz) noexcept -> point
	Returns the result of subtracting specified xtd::drawing::size from the specified xtd::drawing::point.
static auto	subtract (const point &pt1, const point &pt2) noexcept -> point
	Returns the result of subtracting specified xtd::drawing::point from the specified xtd::drawing::point.
static auto	truncate (const xtd::drawing::point_f &value) noexcept -> point
	Converts the specified xtd::drawing::point_f to a point by truncating the values of the xtd::drawing::point_f.

Additional Inherited Members
	object ()=default
	Create a new instance of the ultimate base class object.
virtual auto	get_type () const noexcept -> type_object
	Gets the type of the current instance.
template<typename object_t>
auto	memberwise_clone () const -> xtd::unique_ptr_object< object_t >
	Creates a shallow copy of the current object.
virtual auto	equals (const point &) const noexcept -> bool=0
	Indicates whether the current object is equal to another object of the same type.
template<typename object_a_t, typename object_b_t>
static auto	equals (const object_a_t &object_a, const object_b_t &object_b) noexcept -> bool
	Determines whether the specified object instances are considered equal.
template<typename object_a_t, typename object_b_t>
static auto	reference_equals (const object_a_t &object_a, const object_b_t &object_b) noexcept -> bool
	Determines whether the specified object instances are the same instance.

Constructor & Destructor Documentation

point() [1/4]

xtd::drawing::point::point ( )

defaultnoexcept

Initializes a new instance of the xtd::drawing::point class.

Remarks

xtd::drawing::point::x and xtd::drawing::point::y values are set to zero.

point() [2/4]

xtd::drawing::point::point ( int32 dw )

explicitnoexcept

Initializes a new instance of the xtd::drawing::point class using coordinates specified by an integer value.

Parameters

dx	A 32-bit integer that specifies the coordinates for the new xtd::drawing::point.

Remarks

The low-order 16 bits of the dw parameter specify the horizontal x-coordinate and the higher 16 bits specify the vertical y-coordinate for the new point.

Examples

The following code example demonstrates how to use the point and size. size constructors and the xtd::drawing::content_alignment enumeration. To run this example, paste this code into a Windows Form (xtd::forms) that contains a label named label1, and call the initialize_label1 method in the form's constructor.

void initialize_label1() {
  // Set a border.
  label1.border_style = border_style::fixed_single;

  // Set the size, constructing a size from two integers.
  label1.size(drawing::size(100, 50));

  // Set the location, constructing a point from a 32-bit integer
  // (using hexadecimal).
  label1.location(point(0x280028));

  // Set and align the text on the lower-right side of the label.
  label1.text_align = content_alignment::bottom_right;
  label1.text = "Bottom Right Alignment";
}

point() [3/4]

xtd::drawing::point::point ( xtd::int32 x, xtd::int32 y )

noexcept

Initializes a new instance of the xtd::drawing::point class with the specified coordinates.

Parameters

x	The horizontal position of the point.
y	The vertical position of the point.

Examples

The following code example demonstrates how to use the Equality operator and how to construct a point from a size or two integers. It also demonstrates how to use the x and y properties. This example is designed to be used with Windows Forms (xtd.forms). Paste the code into a form that contains a button named button1, and associate the button1_click method with the button's click event.

void button1_click(object& sender, const event_args& e) {
  // Construct a new point with integers.
  point point1(100, 100);

  // Create a Graphics object.
  graphics form_graphics = create_graphics();

  // Construct another point, this time using a xtd::drawing::size.
  point point2(size(100, 100));

  // Call the equality operator to see if the points are equal, and if so print out their x and y values.
  if (point1 == point2) {
    form_graphics.draw_string(string::format("point1.x: {}, point2.x: {}, point1.y: {}, point2.y {}", point1.x(), point2.x(), point1.y(), point2.y()), font(), brushes::black, point_f(10, 70));
  }
}

point() [4/4]

xtd::drawing::point::point ( const size & sz )

explicitnoexcept

Initializes a new instance of the xtd::drawing::point class from a xtd::drawing::size.

Parameters

sz	A size that specifies the coordinates for the new point.

Examples

The following code example demonstrates how to use the Equality operator and how to construct a point from a size or two integers. It also demonstrates how to use the x and y properties. This example is designed to be used with Windows Forms (xtd.forms). Paste the code into a form that contains a button named button1, and associate the button1_click method with the button's click event.

void button1_click(object& sender, const event_args& e) {
  // Construct a new point with integers.
  point point1(100, 100);

  // Create a Graphics object.
  graphics form_graphics = create_graphics();

  // Construct another point, this time using a xtd::drawing::size.
  point point2(size(100, 100));

  // Call the equality operator to see if the points are equal, and if so print out their x and y values.
  if (point1 == point2) {
    form_graphics.draw_string(string::format("point1.x: {}, point2.x: {}, point1.y: {}, point2.y {}", point1.x(), point2.x(), point1.y(), point2.y()), font(), brushes::black, point_f(10, 70));
  }
}

Member Function Documentation

is_empty()

auto xtd::drawing::point::is_empty ( ) const -> bool

nodiscardnoexcept

Gets a value indicating whether this xtd::drawing::point is empty.

Returns

true if both xtd::drawing::point::x and xtd::drawing::point::y are 0; otherwise, false.

equals() [1/2]

auto xtd::drawing::point::equals ( const xtd::object & obj ) const -> bool

nodiscardoverridevirtualnoexcept

Determines whether the specified object is equal to the current object.

Parameters

obj	The object to compare with the current object.

Returns

true if the specified object is equal to the current object. otherwise, false.

Reimplemented from xtd::object.

equals() [2/2]

auto xtd::drawing::point::equals ( const point & other ) const -> bool

nodiscardoverridenoexcept

Determines whether the specified object is equal to the current object.

Parameters

other

The object to compare with the current object.

Returns

true if the specified object is equal to the current object. otherwise, false.

get_hash_code()

auto xtd::drawing::point::get_hash_code ( ) const -> xtd::usize

nodiscardoverridevirtualnoexcept

Serves as a hash function for a particular type.

Returns

A hash code for the current object.

Reimplemented from xtd::object.

offset() [1/2]

auto xtd::drawing::point::offset ( xtd::int32 dx, xtd::int32 dy ) -> void

noexcept

Translates this xtd::drawing::point by the specified amount.

Parameters

dx	The amount to offset the x-coordinate.
dy	The amount to offset the y-coordinate.

offset() [2/2]

auto xtd::drawing::point::offset ( const point & p ) -> void

noexcept

Translates this xtd::drawing::point by the specified xtd::drawing::point.

Parameters

p	The xtd::drawing::point used offset this xtd::drawing::point.

Remarks

This method adjusts the xtd::drawing::point::x and xtd::drawing::point::y values of this xtd::drawing::point to the sum of the xtd::drawing::point::x and xtd::drawing::point::y values of this xtd::drawing::point and p.

Examples

The following example shows how to use the Offset method. To run this example, paste it into a Windows Form. Handle the form's xtd::forms::control::paint event and call the Offsetpoint method from the xtd::forms::control::paint event-handling method, passing e as xtd::forms::paint_event_args.

void offset_point(paint_event_args& e) {
  point point1(10, 10);
  point1.offset(50, 0);
  point point2(250, 10);
  e.graphics().draw_line(pens::red, point1, point2);
}

to_string()

auto xtd::drawing::point::to_string ( ) const -> xtd::string

nodiscardoverridevirtualnoexcept

Converts this point to a human-readable string.

Returns

An xtd::string that represents this xtd::drawing::point.

Reimplemented from xtd::object.

add() [1/2]

auto xtd::drawing::point::add ( const point & pt, const xtd::drawing::size & sz ) -> point

staticnodiscardnoexcept

Adds the specified xtd::drawing::size to the specified xtd::drawing::point.

Parameters

pt	The xtd::drawing::point to add.
sz	The xtd::drawing::size to add.

Returns

The xtd::drawing::point that is the result of the addition operation.

Remarks

The xtd::drawing::point::add adds the xtd::drawing::size::width and xtd::drawing::size::height of the specified size to the xtd::drawing::point::x and xtd::drawing::point::y values of the specified xtd::drawing::point.

Examples

The following example shows how to use the add method. To run this example, paste it into a Windows Form (xtd::forms. Handle the form's xtd::forms::control::paint event and call the add_point method from the paint event-handling method, passing e as paint_event_args.

void add_point(paint_event_args& e) {
  point point1(10, 10);
  point point2 = point::add(point1, drawing::size(250,0));
  e.graphics().draw_line(pens::red, point1, point2);
}

add() [2/2]

auto xtd::drawing::point::add ( const point & pt1, const point & pt2 ) -> point

staticnodiscardnoexcept

Adds the specified xtd::drawing::point to the specified xtd::drawing::point.

Parameters

pt1	The xtd::drawing::point to add.
pt2	The xtd::drawing::point to add.

Returns

The xtd::drawing::point that is the result of the addition operation.

ceiling()

auto xtd::drawing::point::ceiling ( const xtd::drawing::point_f & value ) -> point

staticnodiscardnoexcept

Converts the specified xtd::drawing::point_f to a point by rounding the values of the xtd::drawing::point_f to the next higher integer values.

Parameters

value

The xtd::drawing::point_f to convert.

Returns

The xtd::drawing::point this method converts to.

round()

auto xtd::drawing::point::round ( const xtd::drawing::point_f & value ) -> point

staticnodiscardnoexcept

Converts the specified xtd::drawing::point_f to a point object by rounding the xtd::drawing::point_f values to the nearest integer.

Parameters

value

The xtd::drawing::point_f to convert.

Returns

The xtd::drawing::point this method converts to.

subtract() [1/2]

auto xtd::drawing::point::subtract ( const point & pt, const size & sz ) -> point

staticnodiscardnoexcept

Returns the result of subtracting specified xtd::drawing::size from the specified xtd::drawing::point.

Parameters

pt	The xtd::drawing::point to be subtracted from.
sz	The xtd::drawing::size to subtract from the xtd::drawing::point.

Returns

The xtd::drawing::point that is the result of the subtraction operation.

Remarks

The xtd::drawing::point::subtract subtracts the xtd::drawing::size::width and xtd::drawing::size::height of the specified xtd::drawing::size from the xtd::drawing::point::x and xtd::drawing::point::y values of the specified xtd::drawing::point.

subtract() [2/2]

auto xtd::drawing::point::subtract ( const point & pt1, const point & pt2 ) -> point

staticnodiscardnoexcept

Returns the result of subtracting specified xtd::drawing::point from the specified xtd::drawing::point.

Parameters

pt1	The xtd::drawing::point to be subtracted from.
pt2	The xtd::drawing::point to subtract from the xtd::drawing::point.

Returns

The xtd::drawing::point that is the result of the subtraction operation.

truncate()

auto xtd::drawing::point::truncate ( const xtd::drawing::point_f & value ) -> point

staticnodiscardnoexcept

Converts the specified xtd::drawing::point_f to a point by truncating the values of the xtd::drawing::point_f.

Parameters

value

The xtd::drawing::point_f to convert.

Returns

The xtd::drawing::point this method converts to.

operator+() [1/2]

auto xtd::drawing::point::operator+ ( const xtd::drawing::size & sz ) const -> point

noexcept

Translates a xtd::drawing::point by a given xtd::drawing::size.

Parameters

sz	A xtd::drawing::size that specifies the pair of numbers to add to the coordinates of this xtd::drawing::point.

Returns

The translated xtd::drawing::point.

operator+() [2/2]

auto xtd::drawing::point::operator+ ( const point & pt ) const -> point

noexcept

Translates a xtd::drawing::point by a given xtd::drawing::point.

Parameters

pt	A xtd::drawing::point that specifies the pair of numbers to add to the coordinates of this xtd::drawing::point.

Returns

The translated xtd::drawing::point.

operator+=() [1/2]

auto xtd::drawing::point::operator+= ( const xtd::drawing::size & sz ) -> point &

noexcept

Translates a xtd::drawing::point by a given xtd::drawing::size.

Parameters

sz	A xtd::drawing::size that specifies the pair of numbers to add to the coordinates of this xtd::drawing::point.

Returns

The translated xtd::drawing::point.

operator+=() [2/2]

auto xtd::drawing::point::operator+= ( const point & pt ) -> point &

noexcept

Translates a xtd::drawing::point by a given xtd::drawing::point.

Parameters

pt	A xtd::drawing::point that specifies the pair of numbers to add to the coordinates of this xtd::drawing::point.

Returns

The translated xtd::drawing::point.

operator-() [1/2]

auto xtd::drawing::point::operator- ( const xtd::drawing::size & sz ) const -> point

noexcept

Translates a xtd::drawing::point by the negative of a given xtd::drawing::size.

Parameters

sz	A xtd::drawing::size that specifies the pair of numbers to subtract from the coordinates of this xtd::drawing::point.

Returns

A xtd::drawing::point structure that is translated by the negative of a given xtd::drawing::size structure.

operator-() [2/2]

auto xtd::drawing::point::operator- ( const point & pt ) const -> point

noexcept

Translates a xtd::drawing::point by the negative of a given xtd::drawing::point.

Parameters

pt	A xtd::drawing::point that specifies the pair of numbers to subtract from the coordinates of this xtd::drawing::point.

Returns

A xtd::drawing::point structure that is translated by the negative of a given xtd::drawing::size structure.

operator-=() [1/2]

auto xtd::drawing::point::operator-= ( const xtd::drawing::size & sz ) -> point &

noexcept

Translates a xtd::drawing::point by the negative of a given xtd::drawing::size.

Parameters

sz	A xtd::drawing::size that specifies the pair of numbers to subtract from the coordinates of this xtd::drawing::point.

Returns

The translated xtd::drawing::point.

operator-=() [2/2]

auto xtd::drawing::point::operator-= ( const point & pt ) -> point &

noexcept

Translates a xtd::drawing::point by the negative of a given xtd::drawing::point.

Parameters

pt	A xtd::drawing::point that specifies the pair of numbers to subtract from the coordinates of this xtd::drawing::point.

Returns

The translated xtd::drawing::point.

Member Data Documentation

empty

const point xtd::drawing::point::empty

static

Represents a xtd::drawing::point that has xtd::drawing::point::x and xtd::drawing::point::y values set to zero.

x

xtd::int32 xtd::drawing::point::x

Gets or sets the x-coordinate of this xtd::drawing::point.

Parameters

x	The x-coordinate of this xtd::drawing::point.

Examples

The following code example demonstrates how to use the Equality operator and how to construct a point from a size or two integers. It also demonstrates how to use the x and y properties. This example is designed to be used with Windows Forms (xtd.forms). Paste the code into a form that contains a button named button1, and associate the button1_click method with the button's click event.

void button1_click(object& sender, const event_args& e) {
  // Construct a new point with integers.
  point point1(100, 100);

  // Create a Graphics object.
  graphics form_graphics = create_graphics();

  // Construct another point, this time using a xtd::drawing::size.
  point point2(size(100, 100));

  // Call the equality operator to see if the points are equal, and if so print out their x and y values.
  if (point1 == point2) {
    form_graphics.draw_string(string::format("point1.x: {}, point2.x: {}, point1.y: {}, point2.y {}", point1.x(), point2.x(), point1.y(), point2.y()), font(), brushes::black, point_f(10, 70));
  }
}

y

xtd::int32 xtd::drawing::point::y

Gets or sets the y-coordinate of this xtd::drawing::point.

Parameters

y	The y-coordinate of this xtd::drawing::point.

Examples

The following code example demonstrates how to use the Equality operator and how to construct a point from a size or two integers. It also demonstrates how to use the x and y properties. This example is designed to be used with Windows Forms (xtd.forms). Paste the code into a form that contains a button named button1, and associate the button1_click method with the button's click event.

void button1_Click(object& sender, const event_args& e) {
  // Construct a new point with integers.
  point point1(100, 100);

  // Create a Graphics object.
  graphics form_graphics = create_graphics();

  // Construct another point, this time using a xtd::drawing::size.
  point point2(size(100, 100));

  // Call the equality operator to see if the points are equal, and if so print out their x and y values.
  if (point1 == point2) {
    form_graphics.draw_string(string::format("point1.x: {}, point2.x: {}, point1.y: {}, point2.y {}", point1.x(), point2.x(), point1.y(), point2.y()), font(), brushes::black, point_f(10, 70));
  }
}

---

The documentation for this struct was generated from the following file:

• xtd.drawing/include/xtd/drawing/point.hpp
