xtd::drawing::size Struct Reference

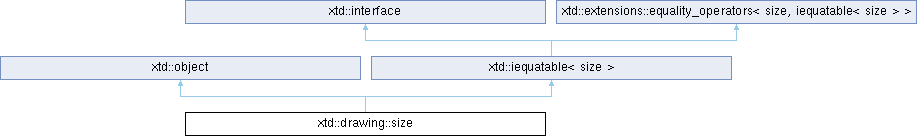

Inheritance diagram for xtd::drawing::size:

Definition

Stores an ordered pair of integers, which specify a height and width.

class drawing_export_ size : public xtd::object

Inheritance

xtd::object → xtd::drawing::size

Namespace

xtd::drawing

Library

xtd.drawing

Examples

image_effects.cpp, point.cpp, and tutorial_button.cpp.

Public Fields
static const xtd::drawing::size	empty
	Gets a xtd::drawing::size class that has a Height and Width value of 0. This field is constant.

Public Properties
xtd::int32	width
	Gets or sets the horizontal component of this xtd::drawing::size class.
xtd::int32	height
	Gets or sets he vertical component of this xtd::drawing::size class.
auto	is_empty () const noexcept -> bool
	Tests whether this xtd::drawing::size class has xtd::drawing::size_fwidth and xtd::drawing::size_fheight of 0.

Public Constructors
	size ()=default
	Initializes a new instance of the xtd::drawing::size class that has a Height and Width value of 0.
	size (const xtd::drawing::point &point) noexcept
	Initializes a new instance of the xtd::drawing::size class from the specified xtd::drawing::point class.
	size (xtd::int32 width, xtd::int32 height) noexcept
	Initializes a new instance of the xtd::drawing::size class from the specified dimensions.

Public Methods
auto	compare_to (const xtd::drawing::size &obj) const noexcept -> xtd::int32 override
	Compares the current instance with another object of the same type.
auto	equals (const xtd::object &obj) const noexcept -> bool override
	Determines whether the specified object is equal to the current object.
auto	equals (const xtd::drawing::size &other) const noexcept -> bool override
	Determines whether the specified object is equal to the current object.
auto	get_hash_code () const noexcept -> xtd::usize override
	Serves as a hash function for a particular type.
auto	to_string () const noexcept -> xtd::string override
	Creates a human-readable string that represents this xtd::drawing::size class.

Operators
auto	operator+ (const size &size) const noexcept -> xtd::drawing::size
	Increases a xtd::drawing::size with a given xtd::drawing::size.
auto	operator+= (const size &size) noexcept -> xtd::drawing::size &
	Increases a xtd::drawing::size wuth a given xtd::drawing::size.
auto	operator- (const size &size) const noexcept -> xtd::drawing::size
	Decreases a xtd::drawing::size with the a given xtd::drawing::size.
auto	operator-= (const size &size) noexcept -> xtd::drawing::size &
	Decreases a xtd::drawing::size with the a given xtd::drawing::size.

Public Static Methods
static auto	add (const size &size1, const size &size2) noexcept -> size
	Adds the width and height of one xtd::drawing::size class to the width and height of another size class.
static auto	ceiling (const xtd::drawing::size_f &value) noexcept -> size
	Converts the specified xtd::drawing::size_f to a xtd::drawing::size by rounding the values of the xtd::drawing::size_f to the next higher integer values.
static auto	round (const xtd::drawing::size_f &value) noexcept -> size
	Converts the specified xtd::drawing::size_f to a xtd::drawing::size object by rounding the xtd::drawing::size_f values to the nearest integer.
static auto	subtract (const size &sz1, const size &sz2) noexcept -> size
	Returns the result of subtracting specified xtd::drawing::size from the specified xtd::drawing::size.
static auto	truncate (const xtd::drawing::size_f &value) noexcept -> size
	Converts the specified xtd::drawing::size_f to a xtd::drawing::size by truncating the values of the xtd::drawing::size_f.

Additional Inherited Members
	object ()=default
	Create a new instance of the ultimate base class object.
virtual auto	get_type () const noexcept -> type_object
	Gets the type of the current instance.
template<typename object_t>
auto	memberwise_clone () const -> xtd::unique_ptr_object< object_t >
	Creates a shallow copy of the current object.
virtual auto	compare_to (const size &obj) const noexcept -> xtd::int32=0
	Compares the current instance with another object of the same type.
virtual auto	equals (const size &) const noexcept -> bool=0
	Indicates whether the current object is equal to another object of the same type.
template<typename object_a_t, typename object_b_t>
static auto	equals (const object_a_t &object_a, const object_b_t &object_b) noexcept -> bool
	Determines whether the specified object instances are considered equal.
template<typename object_a_t, typename object_b_t>
static auto	reference_equals (const object_a_t &object_a, const object_b_t &object_b) noexcept -> bool
	Determines whether the specified object instances are the same instance.

Constructor & Destructor Documentation

size() [1/3]

xtd::drawing::size::size ( )

default

Initializes a new instance of the xtd::drawing::size class that has a Height and Width value of 0.

size() [2/3]

xtd::drawing::size::size ( const xtd::drawing::point & point )

explicitnoexcept

Initializes a new instance of the xtd::drawing::size class from the specified xtd::drawing::point class.

Parameters

point

The xtd::drawing::point class from which to initialize this xtd::drawing::size class

size() [3/3]

xtd::drawing::size::size ( xtd::int32 width, xtd::int32 height )

noexcept

Initializes a new instance of the xtd::drawing::size class from the specified dimensions.

Parameters

width	The width component of the new xtd::drawing::size.
height	The height component of the new xtd::drawing::size.

Member Function Documentation

is_empty()

auto xtd::drawing::size::is_empty ( ) const -> bool

nodiscardnoexcept

Tests whether this xtd::drawing::size class has xtd::drawing::size_fwidth and xtd::drawing::size_fheight of 0.

Returns

Returns true when this xtd::drawing::size class has both a xtd::drawing::size::width and xtd::drawing::size::height of 0; otherwise, false.

compare_to()

auto xtd::drawing::size::compare_to ( const xtd::drawing::size & obj ) const -> xtd::int32

nodiscardoverridenoexcept

Compares the current instance with another object of the same type.

Parameters

obj	An object to compare with this instance.

Returns

A 32-bit signed integer that indicates the relative order of the objects being compared. The return value has these meanings:

Value	Condition
Less than zero	This instance is less than obj.
Zero	This instance is equal to obj.
Greater than zero	This instance is greater than obj.

equals() [1/2]

auto xtd::drawing::size::equals ( const xtd::object & obj ) const -> bool

nodiscardoverridevirtualnoexcept

Determines whether the specified object is equal to the current object.

Parameters

obj	The object to compare with the current object.

Returns

true if the specified object is equal to the current object. otherwise, false.

Reimplemented from xtd::object.

equals() [2/2]

auto xtd::drawing::size::equals ( const xtd::drawing::size & other ) const -> bool

nodiscardoverridenoexcept

Determines whether the specified object is equal to the current object.

Parameters

other

The object to compare with the current object.

Returns

true if the specified object is equal to the current object. otherwise, false.

get_hash_code()

auto xtd::drawing::size::get_hash_code ( ) const -> xtd::usize

nodiscardoverridevirtualnoexcept

Serves as a hash function for a particular type.

Returns

A hash code for the current object.

Reimplemented from xtd::object.

to_string()

auto xtd::drawing::size::to_string ( ) const -> xtd::string

nodiscardoverridevirtualnoexcept

Creates a human-readable string that represents this xtd::drawing::size class.

Returns

A xtd::string that represents this xtd::drawing::size.

Reimplemented from xtd::object.

add()

auto xtd::drawing::size::add ( const size & size1, const size & size2 ) -> size

staticnodiscardnoexcept

Adds the width and height of one xtd::drawing::size class to the width and height of another size class.

Parameters

size1	The first xtd::drawing::size class to add.
size2	The second xtd::drawing::size class to add.

Returns

xtd::drawing::size A xtd::drawing::size class that is the result of the addition operation.

ceiling()

auto xtd::drawing::size::ceiling ( const xtd::drawing::size_f & value ) -> size

staticnodiscardnoexcept

Converts the specified xtd::drawing::size_f to a xtd::drawing::size by rounding the values of the xtd::drawing::size_f to the next higher integer values.

Parameters

value

The xtd::drawing::size_f to convert.

Returns

The xtd::drawing::size this method converts to.

round()

auto xtd::drawing::size::round ( const xtd::drawing::size_f & value ) -> size

staticnodiscardnoexcept

Converts the specified xtd::drawing::size_f to a xtd::drawing::size object by rounding the xtd::drawing::size_f values to the nearest integer.

Parameters

value

The xtd::drawing::size_f to convert.

Returns

The xtd::drawing::size this method converts to.

subtract()

auto xtd::drawing::size::subtract ( const size & sz1, const size & sz2 ) -> size

staticnodiscardnoexcept

Returns the result of subtracting specified xtd::drawing::size from the specified xtd::drawing::size.

Parameters

sz1	The xtd::drawing::size to be subtracted from.
sz2	The xtd::drawing::size to subtract from the xtd::drawing::size.

Returns

The xtd::drawing::size that is the result of the subtraction operation.

truncate()

auto xtd::drawing::size::truncate ( const xtd::drawing::size_f & value ) -> size

staticnodiscardnoexcept

Converts the specified xtd::drawing::size_f to a xtd::drawing::size by truncating the values of the xtd::drawing::size_f.

Parameters

value

The xtd::drawing::size_f to convert.

Returns

The xtd::drawing::size this method converts to.

operator+()

auto xtd::drawing::size::operator+ ( const size & size ) const -> xtd::drawing::size

noexcept

Increases a xtd::drawing::size with a given xtd::drawing::size.

Parameters

size	A xtd::drawing::size that specifies the pair of numbers to add to the size of this xtd::drawing::size.

Returns

The increased xtd::drawing::size.

operator+=()

auto xtd::drawing::size::operator+= ( const size & size ) -> xtd::drawing::size &

noexcept

Increases a xtd::drawing::size wuth a given xtd::drawing::size.

Parameters

size	A xtd::drawing::size that specifies the pair of numbers to add to the size of this xtd::drawing::size.

Returns

The increased xtd::drawing::size.

operator-()

auto xtd::drawing::size::operator- ( const size & size ) const -> xtd::drawing::size

noexcept

Decreases a xtd::drawing::size with the a given xtd::drawing::size.

Parameters

size	A xtd::drawing::size that specifies the pair of numbers to subtract from the size of this xtd::drawing::size.

Returns

The decreased xtd::drawing::size.

operator-=()

auto xtd::drawing::size::operator-= ( const size & size ) -> xtd::drawing::size &

noexcept

Decreases a xtd::drawing::size with the a given xtd::drawing::size.

Parameters

size	A xtd::drawing::size that specifies the pair of numbers to subtract from the size of this xtd::drawing::size.

Returns

The decreased xtd::drawing::size.

Member Data Documentation

empty

const xtd::drawing::size xtd::drawing::size::empty

static

Gets a xtd::drawing::size class that has a Height and Width value of 0. This field is constant.

width

xtd::int32 xtd::drawing::size::width

Gets or sets the horizontal component of this xtd::drawing::size class.

Parameters

width

The horizontal component of this xtd::drawing::size class, typically measured in pixels.

Remarks

The unit for the xtd::drawing::size::height and xtd::drawing::size::width of the xtd::drawing::size class depend on the xtd::drawing::graphics:page_unit and xtd::drawing::graphics::page_scale settings for the xtd::drawing::::graphics object that is used to draw.

height

xtd::int32 xtd::drawing::size::height

Gets or sets he vertical component of this xtd::drawing::size class.

Parameters

height

The vertical component of this xtd::drawing::size class, typically measured in pixels.

Remarks

The unit for the xtd::drawing::size::height and xtd::drawing::size::width of the xtd::drawing::size class depend on the xtd::drawing::graphics:page_unit and xtd::drawing::graphics::page_scale settings for the xtd::drawing::::graphics object that is used to draw.

---

The documentation for this struct was generated from the following file:

• xtd.drawing/include/xtd/drawing/size.hpp
