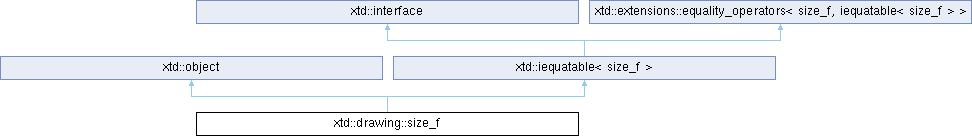

Inheritance diagram for xtd::drawing::size_f:

Definition

Stores an ordered pair of floating-point, which specify a height and width.

class drawing_export_ size_f : public xtd::object

xtd::object

Supports all classes in the xtd class hierarchy and provides low-level services to derived classes....

Definition object.hpp:44

drawing_export_

#define drawing_export_

Define shared library export.

Definition drawing_export.hpp:13

xtd::drawing::size_f::size_f

size_f() noexcept=default

Initializes a new instance of the Size class that has a Height and Width value of 0.

Inheritance: xtd::object → xtd::drawing::size_f

Namespace: xtd::drawing

Library: xtd.drawing

Public Fields
static const xtd::drawing::size_f	empty
	Gets a Size class that has a Height and Width value of 0. This field is constant.

Public Properties
float	width
	Gets or sets the horizontal component of this xtd::drawing::size_f class.

float	height
	Gets or sets he vertical component of this xtd::drawing::size_f class.

bool	is_empty () const noexcept
	Tests whether this Size class has xtd::drawing::size_f::width and xtd::drawing::size_f::height of 0.

Public Constructors
	size_f () noexcept=default
	Initializes a new instance of the Size class that has a Height and Width value of 0.

	size_f (const xtd::drawing::point_f &point) noexcept
	Initializes a new instance of the xtd::drawing::size_f class from the specified xtd::drawing::point_f class.

	size_f (float width, float height) noexcept
	Initializes a new instance of the xtd::drawing::size_f class from the specified dimensions.

Public Methods
int32	compare_to (const xtd::drawing::size_f &obj) const noexcept override
	Compares the current instance with another object of the same type.

bool	equals (const xtd::object &obj) const noexcept override
	Determines whether the specified object is equal to the current object.

bool	equals (const xtd::drawing::size_f &other) const noexcept override
	Determines whether the specified object is equal to the current object.

xtd::size	get_hash_code () const noexcept override
	Serves as a hash function for a particular type.

xtd::string	to_string () const noexcept override
	Creates a human-readable string that represents this xtd::drawing::size_f class.

Operators
size_f	operator+ (const xtd::drawing::size_f &size) const noexcept
	Increases a xtd::drawing::size_f with a given xtd::drawing::size_f.

size_f	operator+ (const xtd::drawing::size &size) const noexcept
	Increases a xtd::drawing::size_f with a given xtd::drawing::size.

size_f &	operator+= (const xtd::drawing::size_f &size) noexcept
	Increases a xtd::drawing::size_f wuth a given xtd::drawing::size_f.

size_f &	operator+= (const xtd::drawing::size &size) noexcept
	Increases a xtd::drawing::size_f wuth a given xtd::drawing::size.

size_f	operator- (const xtd::drawing::size_f &size) const noexcept
	Decreases a xtd::drawing::size_f with the a given xtd::drawing::size_f.

size_f	operator- (const xtd::drawing::size &size) const noexcept
	Decreases a xtd::drawing::size_f with the a given xtd::drawing::size.

size_f &	operator-= (const xtd::drawing::size_f &size) noexcept
	Decreases a xtd::drawing::size_f with the a given xtd::drawing::size_f.

size_f &	operator-= (const xtd::drawing::size &size) noexcept
	Decreases a xtd::drawing::size_f with the a given xtd::drawing::size.

Public Static Methods
static xtd::drawing::size_f	add (const xtd::drawing::size_f &size1, const xtd::drawing::size_f &size2) noexcept
	Adds the width and height of one xtd::drawing::size_f class to the width and height of another xtd::drawing::size_f class.

static xtd::drawing::size_f	subtract (const xtd::drawing::size_f &sz1, const xtd::drawing::size_f &sz2) noexcept
	Returns the result of subtracting specified xtd::drawing::size_f from the specified xtd::drawing::size_f.

Additional Inherited Members
	object ()=default
	Create a new instance of the ultimate base class object.

virtual type_object	get_type () const noexcept
	Gets the type of the current instance.

template<class object_t>
xtd::unique_ptr_object< object_t >	memberwise_clone () const
	Creates a shallow copy of the current object.

virtual int32	compare_to (const size_f &obj) const noexcept=0
	Compares the current instance with another object of the same type.

virtual bool	equals (const size_f &) const noexcept=0
	Indicates whether the current object is equal to another object of the same type.

template<class object_a_t, class object_b_t>
static bool	equals (const object_a_t &object_a, const object_b_t &object_b) noexcept
	Determines whether the specified object instances are considered equal.

template<class object_a_t, class object_b_t>
static bool	reference_equals (const object_a_t &object_a, const object_b_t &object_b) noexcept
	Determines whether the specified object instances are the same instance.

Constructor & Destructor Documentation

◆ size_f() [1/3]

xtd::drawing::size_f::size_f ( )

defaultnoexcept

Initializes a new instance of the Size class that has a Height and Width value of 0.

◆ size_f() [2/3]

xtd::drawing::size_f::size_f ( const xtd::drawing::point_f & point )

explicitnoexcept

Initializes a new instance of the xtd::drawing::size_f class from the specified xtd::drawing::point_f class.

Parameters

point The xtd::drawing::point_f class from which to initialize this xtd::drawing::size_f class

◆ size_f() [3/3]

xtd::drawing::size_f::size_f	(	float	width,
		float	height )

noexcept

Initializes a new instance of the xtd::drawing::size_f class from the specified dimensions.

Parameters

width	The width component of the new xtd::drawing::size_f.
height	The height component of the new xtd::drawing::size_f.

Member Function Documentation

◆ is_empty()

bool xtd::drawing::size_f::is_empty ( ) const

noexcept

Tests whether this Size class has xtd::drawing::size_f::width and xtd::drawing::size_f::height of 0.

Returns: Returns true when this xtd::drawing::size_f class has both a xtd::drawing::size_fwidth and xtd::drawing::size_fheight of 0; otherwise, false.

◆ compare_to()

int32 xtd::drawing::size_f::compare_to ( const xtd::drawing::size_f & obj ) const

overridenoexcept

Compares the current instance with another object of the same type.

Parameters

obj	An object to compare with this instance.

Returns: A 32-bit signed integer that indicates the relative order of the objects being compared. The return value has these meanings:

Value	Condition
Less than zero	This instance is less than obj.
Zero	This instance is equal to obj.
Greater than zero	This instance is greater than obj.

◆ equals() [1/2]

bool xtd::drawing::size_f::equals ( const xtd::object & obj ) const

overridevirtualnoexcept

Determines whether the specified object is equal to the current object.

Parameters

obj	The object to compare with the current object.

Returns: true if the specified object is equal to the current object. otherwise, false.

Reimplemented from xtd::object.

◆ equals() [2/2]

bool xtd::drawing::size_f::equals ( const xtd::drawing::size_f & other ) const

overridenoexcept

Determines whether the specified object is equal to the current object.

Parameters

other The object to compare with the current object.

Returns: true if the specified object is equal to the current object. otherwise, false.

◆ get_hash_code()

xtd::size xtd::drawing::size_f::get_hash_code ( ) const

overridevirtualnoexcept

Serves as a hash function for a particular type.

Returns: A hash code for the current object.

Reimplemented from xtd::object.

◆ to_string()

xtd::string xtd::drawing::size_f::to_string ( ) const

overridevirtualnoexcept

Creates a human-readable string that represents this xtd::drawing::size_f class.

Returns: A xtd::string that represents this size.

Reimplemented from xtd::object.

◆ add()

static xtd::drawing::size_f xtd::drawing::size_f::add	(	const xtd::drawing::size_f &	size1,
		const xtd::drawing::size_f &	size2 )

staticnoexcept

Adds the width and height of one xtd::drawing::size_f class to the width and height of another xtd::drawing::size_f class.

Parameters

size1	The first xtd::drawing::size_f class to add.
size2	The second xtd::drawing::size_f class to add.

Returns: A xtd::drawing::size_f class that is the result of the addition operation.

◆ subtract()

static xtd::drawing::size_f xtd::drawing::size_f::subtract	(	const xtd::drawing::size_f &	sz1,
		const xtd::drawing::size_f &	sz2 )

staticnoexcept

Returns the result of subtracting specified xtd::drawing::size_f from the specified xtd::drawing::size_f.

Parameters

sz1	The xtd::drawing::size_f to be subtracted from.
sz2	The xtd::drawing::size_f to subtract from the Size.

Returns: The xtd::drawing::size_f that is the result of the subtraction operation.

◆ operator+() [1/2]

size_f xtd::drawing::size_f::operator+ ( const xtd::drawing::size_f & size ) const

noexcept

Increases a xtd::drawing::size_f with a given xtd::drawing::size_f.

Parameters

size	A xtd::drawing::size_f that specifies the pair of numbers to add to the size of this xtd::drawing::size_f.

Returns: The increased xtd::drawing::size.

◆ operator+() [2/2]

size_f xtd::drawing::size_f::operator+ ( const xtd::drawing::size & size ) const

noexcept

Increases a xtd::drawing::size_f with a given xtd::drawing::size.

Parameters

size	A xtd::drawing::size that specifies the pair of numbers to add to the size of this xtd::drawing::size_f.

Returns: The increased xtd::drawing::size_f.

◆ operator+=() [1/2]

size_f & xtd::drawing::size_f::operator+= ( const xtd::drawing::size_f & size )

noexcept

Increases a xtd::drawing::size_f wuth a given xtd::drawing::size_f.

Parameters

size	A xtd::drawing::size_f that specifies the pair of numbers to add to the size of this xtd::drawing::size_f.

Returns: The increased xtd::drawing::size_f.

◆ operator+=() [2/2]

size_f & xtd::drawing::size_f::operator+= ( const xtd::drawing::size & size )

noexcept

Increases a xtd::drawing::size_f wuth a given xtd::drawing::size.

Parameters

size	A xtd::drawing::size that specifies the pair of numbers to add to the size of this xtd::drawing::size_f.

Returns: The increased xtd::drawing::size_f.

◆ operator-() [1/2]

size_f xtd::drawing::size_f::operator- ( const xtd::drawing::size_f & size ) const

noexcept

Decreases a xtd::drawing::size_f with the a given xtd::drawing::size_f.

Parameters

size	A xtd::drawing::size_f that specifies the pair of numbers to subtract from the size of this xtd::drawing::size_f.

Returns: The decreased xtd::drawing::size_f.

◆ operator-() [2/2]

size_f xtd::drawing::size_f::operator- ( const xtd::drawing::size & size ) const

noexcept

Decreases a xtd::drawing::size_f with the a given xtd::drawing::size.

Parameters

size	A xtd::drawing::size that specifies the pair of numbers to subtract from the size of this xtd::drawing::size_f.

Returns: The decreased xtd::drawing::size_f.

◆ operator-=() [1/2]

size_f & xtd::drawing::size_f::operator-= ( const xtd::drawing::size_f & size )

noexcept

Decreases a xtd::drawing::size_f with the a given xtd::drawing::size_f.

Parameters

size	A xtd::drawing::size_f that specifies the pair of numbers to subtract from the size of this xtd::drawing::size_f.

Returns: The decreased xtd::drawing::size_f.

◆ operator-=() [2/2]

size_f & xtd::drawing::size_f::operator-= ( const xtd::drawing::size & size )

noexcept

Decreases a xtd::drawing::size_f with the a given xtd::drawing::size.

Parameters

size	A xtd::drawing::size that specifies the pair of numbers to subtract from the size of this xtd::drawing::size_f.

Returns: The decreased xtd::drawing::size_f.

Member Data Documentation

◆ empty

const xtd::drawing::size_f xtd::drawing::size_f::empty

static

Gets a Size class that has a Height and Width value of 0. This field is constant.

◆ width

float xtd::drawing::size_f::width

Gets or sets the horizontal component of this xtd::drawing::size_f class.

Parameters

width The horizontal component of this xtd::drawing::size_f class, typically measured in pixels.

Remarks: The unit for the xtd::drawing::size_f::height and xtd::drawing::size_f::width of the xtd::drawing::size_f class depend on the xtd::drawing::graphics::page_unit and xtd::drawing::graphics::page_scale settings for the xtd::drawing::graphics object that is used to draw.

◆ height

float xtd::drawing::size_f::height

Gets or sets he vertical component of this xtd::drawing::size_f class.

Parameters

height The vertical component of this xtd::drawing::size_f class, typically measured in pixels.

Remarks: The unit for the xtd::drawing::size_f::height and xtd::drawing::size_f::width of the xtd::drawing::size_f class depend on the xtd::drawing::graphics::page_unit and xtd::drawing::graphics::page_scale settings for the xtd::drawing::graphics object that is used to draw.

The documentation for this struct was generated from the following file:

xtd.drawing/include/xtd/drawing/size_f.hpp

Definition

Public Fields

Public Properties

Public Constructors

Public Methods

Operators

Public Static Methods

Additional Inherited Members

Constructor & Destructor Documentation

◆ size_f() [1/3]

◆ size_f() [2/3]

◆ size_f() [3/3]

Member Function Documentation

◆ is_empty()

◆ compare_to()

◆ equals() [1/2]

◆ equals() [2/2]

◆ get_hash_code()

◆ to_string()

◆ add()

◆ subtract()

◆ operator+() [1/2]

◆ operator+() [2/2]

◆ operator+=() [1/2]

◆ operator+=() [2/2]

◆ operator-() [1/2]

◆ operator-() [2/2]

◆ operator-=() [1/2]

◆ operator-=() [2/2]

Member Data Documentation

◆ empty

◆ width

◆ height
