xtd::drawing::drawing2d::hatch_brush Class Referencefinal

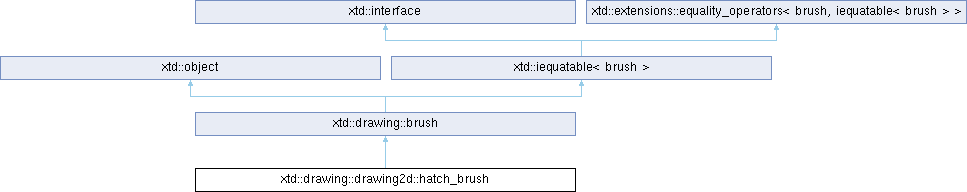

Inheritance diagram for xtd::drawing::drawing2d::hatch_brush:
xtd::drawing::brush xtd::object xtd::iequatable< brush > xtd::interface xtd::extensions::equality_operators< brush, iequatable< brush > >

Definition

Defines a rectangular xtd::drawing::brush with a hatch style, a foreground color, and a background color. This class cannot be inherited.

Namespace
xtd::drawing::drawing_2d
Library
xtd.drawing
Remarks
The following illustration shows a rectangle filled with the xtd::drawing::drawing_2d::hatch_style::diagonal_brick hatch pattern.
Examples
The following code example demonstrates the use of hatch_brush class.
#include <xtd/drawing/drawing_2d/conical_gradient_brush>
#include <xtd/drawing/drawing_2d/hatch_brush>
#include <xtd/drawing/drawing_2d/linear_gradient_brush>
#include <xtd/drawing/drawing_2d/radial_gradient_brush>
#include <xtd/drawing/solid_brush>
#include <xtd/drawing/texture_brush>
#include <xtd/forms/application>
#include <xtd/forms/form>
using namespace xtd;
using namespace xtd::drawing;
using namespace xtd::drawing::drawing_2d;
using namespace xtd::forms;
namespace fill_rectangle_example {
class form1 : public form {
public:
form1() {
text("Fill rectangle example");
client_size({680, 340});
}
protected:
void on_paint(paint_event_args& e) override {
auto back_color = color::navy;
auto fore_color = color::white;
e.graphics().fill_rectangle(solid_brush {color::transparent}, rectangle {10, 10, 150, 150});
e.graphics().draw_rectangle(pen {fore_color, 4}, rectangle {10, 10, 150, 150});
e.graphics().fill_rectangle(solid_brush {back_color}, rectangle {180, 10, 150, 150});
e.graphics().draw_rectangle(pen {fore_color, 4}, rectangle {180, 10, 150, 150});
e.graphics().fill_rectangle(texture_brush {create_circle_texture(fore_color, back_color)}, rectangle {350, 10, 150, 150});
e.graphics().draw_rectangle(pen {fore_color, 4}, rectangle {350, 10, 150, 150});
e.graphics().fill_rectangle(hatch_brush {hatch_style::diagonal_brick, color::white, back_color}, rectangle {520, 10, 150, 150});
e.graphics().draw_rectangle(pen {color::white, 4}, rectangle {520, 10, 150, 150});
e.graphics().fill_rectangle(conical_gradient_brush {point {85, 255}, back_color, fore_color, 0}, rectangle {10, 180, 150, 150});
e.graphics().draw_rectangle(pen {color::white, 4}, rectangle {10, 180, 150, 150});
e.graphics().fill_rectangle(linear_gradient_brush {rectangle {180, 180, 150, 150}, back_color, fore_color, 315}, rectangle {180, 180, 150, 150});
e.graphics().draw_rectangle(pen {color::white, 4}, rectangle {180, 180, 150, 150});
e.graphics().fill_rectangle(radial_gradient_brush {point {425, 255}, fore_color, back_color, 73}, rectangle {350, 180, 150, 150});
e.graphics().draw_rectangle(pen {color::white, 4}, rectangle {350, 180, 150, 150});
}
private:
auto create_circle_texture(const color& fore_color, const color& back_color)->image {
auto texture = bitmap {16, 16};
auto graphics = texture.create_graphics();
graphics.fill_ellipse(solid_brush {back_color}, 1, 1, texture.width() - 2, texture.height() - 2);
graphics.draw_ellipse(pen {fore_color, 2}, 1, 1, texture.width() - 2, texture.height() - 2);
return texture;
}
};
}
auto main() -> int {
application::run(fill_rectangle_example::form1 {});
}
static const xtd::drawing::color transparent
Gets a system-defined color that has an ARGB value of 0x00000000. This field is constant.
Definition color.hpp:56
static const xtd::drawing::color white
Gets a system-defined color that has an ARGB value of 0xFFFFFFFF. This field is constant.
Definition color.hpp:470
static const xtd::drawing::color navy
Gets a system-defined color that has an ARGB value of 0xFF000080. This field is constant.
Definition color.hpp:344
Defines an object used to draw lines and curves. This class cannot be inherited.
Definition pen.hpp:32
Defines a xtd::drawing::brush of a single color. Brushes are used to fill graphics shapes,...
Definition solid_brush.hpp:29
static void run()
Begins running a standard application message loop on the current thread, without a form.
Represents a window or dialog box that makes up an application's user interface.
Definition form.hpp:54
void on_paint(paint_event_args &e) override
Raises the xtd::forms::control::paint event.
Provides data for the xtd::forms::control::paint event.
Definition paint_event_args.hpp:30
@ e
The E key.
Definition console_key.hpp:96
@ point
Specifies a printer's point (1/72 inch) as the unit of measure.
Definition graphics_unit.hpp:25
The xtd::drawing::drawing_2d namespace provides advanced two-dimensional and vector graphics function...
Definition compositing_mode.hpp:12
The xtd::drawing::text namespace provides advanced GDI+ typography functionality.
Definition font_collection.hpp:14
The xtd::drawing namespace provides access to GDI+ basic graphics functionality. More advanced functi...
Definition actions_system_images.hpp:10
The xtd::forms namespace contains classes for creating Windows-based applications that take full adva...
Definition texts.hpp:219
The xtd namespace contains all fundamental classes to access Hardware, Os, System,...
Definition abstract_object.hpp:8
Stores a set of four integers that represent the location and size of a rectangle.
Definition rectangle.hpp:44

Public Constructors

 hatch_brush (xtd::drawing::drawing_2d::hatch_style hatch_style, const xtd::drawing::color &fore_color)
 Initializes a new instance of the xtd::drawing::drawing_2d::hatch_brush class with the specified xtd::drawing::drawing_2d::hatch_style enumeration and foreground color.

 hatch_brush (xtd::drawing::drawing_2d::hatch_style hatch_style, const xtd::drawing::color &fore_color, const xtd::drawing::color &back_color)
 Initializes a new instance of the xtd::drawing::drawing_2d::hatch_brush class with the specified xtd::drawing::drawing_2d::hatch_style enumeration, foreground color and background color.


Public Properties

xtd::drawing::color background_color () const noexcept
 Gets the color of spaces between the hatch lines drawn by this hatch_brush object.

xtd::drawing::color foreground_color () const noexcept
 Gets the color of hatch lines drawn by this hatch_brush object.

xtd::drawing::drawing_2d::hatch_style hatch_style () const noexcept
 Gets the hatch style of this hatch_brush object.


Additional Inherited Members

intptr handle () const noexcept
 Gets the handle of the brush.

bool equals (const xtd::object &obj) const noexcept override
 Determines whether the specified object is equal to the current object.

bool equals (const brush &other) const noexcept override
 Determines whether the specified object is equal to the current object.

xtd::size get_hash_code () const noexcept override
 Serves as a hash function for a particular type.

xtd::string to_string () const noexcept override
 Converts this brush object to a human-readable string.

 object ()=default
 Create a new instance of the ultimate base class object.

virtual type_object get_type () const noexcept
 Gets the type of the current instance.

template<class object_t>
xtd::unique_ptr_object< object_t > memberwise_clone () const
 Creates a shallow copy of the current object.

virtual bool equals (const brush &) const noexcept=0
 Indicates whether the current object is equal to another object of the same type.

template<class object_a_t, class object_b_t>
static bool equals (const object_a_t &object_a, const object_b_t &object_b) noexcept
 Determines whether the specified object instances are considered equal.

template<class object_a_t, class object_b_t>
static bool reference_equals (const object_a_t &object_a, const object_b_t &object_b) noexcept
 Determines whether the specified object instances are the same instance.

 brush ()
 Initialize a new instance of brush class.

void set_native_brush (intptr brush)
 In a derived class, sets a reference to a GDI+ brush object.


Constructor & Destructor Documentation

◆ hatch_brush() [1/2]

xtd::drawing::drawing_2d::hatch_brush::hatch_brush ( xtd::drawing::drawing_2d::hatch_style hatch_style,
const xtd::drawing::color & fore_color )

Initializes a new instance of the xtd::drawing::drawing_2d::hatch_brush class with the specified xtd::drawing::drawing_2d::hatch_style enumeration and foreground color.

Parameters
hatch_styleOne of the xtd::drawing::drawing_2d::hatch_style values that represents the pattern drawn by this xtd::drawing::drawing_2d::hatch_brush.
fore_colorThe xtd::drawing::color structure that represents the color of lines drawn by this xtd::drawing::drawing_2d::hatch_brush.
Remarks
The background color is initialized to black.

◆ hatch_brush() [2/2]

xtd::drawing::drawing_2d::hatch_brush::hatch_brush ( xtd::drawing::drawing_2d::hatch_style hatch_style,
const xtd::drawing::color & fore_color,
const xtd::drawing::color & back_color )

Initializes a new instance of the xtd::drawing::drawing_2d::hatch_brush class with the specified xtd::drawing::drawing_2d::hatch_style enumeration, foreground color and background color.

Parameters
hatch_styleOne of the xtd::drawing::drawing_2d::hatch_style values that represents the pattern drawn by this xtd::drawing::drawing_2d::hatch_brush.
fore_colorThe xtd::drawing::color structure that represents the color of lines drawn by this xtd::drawing::drawing_2d::hatch_brush.
back_colorThe xtd::drawing::color structure that represents the color of spaces between the lines drawn by this xtd::drawing::drawing_2d::hatch_brush.

Member Function Documentation

◆ background_color()

xtd::drawing::color xtd::drawing::drawing_2d::hatch_brush::background_color ( ) const
noexcept

Gets the color of spaces between the hatch lines drawn by this hatch_brush object.

Returns
A xtd::drawing::color structure that represents the background color for this hatch_brush.

◆ foreground_color()

xtd::drawing::color xtd::drawing::drawing_2d::hatch_brush::foreground_color ( ) const
noexcept

Gets the color of hatch lines drawn by this hatch_brush object.

Returns
A xtd::drawing::color structure that represents the foreground color for this hatch_brush.

◆ hatch_style()

xtd::drawing::drawing_2d::hatch_style xtd::drawing::drawing_2d::hatch_brush::hatch_style ( ) const
noexcept

Gets the hatch style of this hatch_brush object.

Returns
One of the xtd::drawing::drawing_2d::hatch_style values that represents the pattern of this hatch_brush.

The documentation for this class was generated from the following file:
